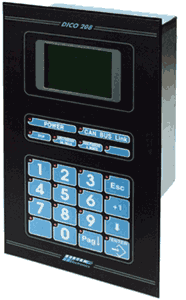

Dico -208 Controller

Control and acquisition unit with buttons and display. Connects 48 I/O (up to 80 I/O opt. )

DICO-208 is an industrial terminal that can be connected in a Bitbus network.
It combines both operator interface and machine control/data acquisition with its graphic display (128x64), its 16 buttons and 20 leds and its 48 I/O points  (up to 80 for DICO-208/E).
All keys can be customized by pockets inside.

16 PNP digital inputs, 16 PNP digital outputs and one DICO I/O module slot (for 16 more I/O points). Optional serial I/F: RS232, RS422/485, Current Loop, CANbus.
Dimensions: 243x128x80 mm

Dico -308 Controller

Industrial terminal with native BITBUS interface

DICO 308 is a terminal that is mainly used either as a console for automatic machines or as an industrial terminal for integration projects.

Graphic display: 6"; 320×240.
Buttons: 50 mechanical tactile effect keys with polyester cover; total run 0.3mm; major life 5×10⁶ operations. All keys can be customized by pockets inside.
Input/Output (optional): 4 PNP digital inputs, 2 relay outputs.

Optional serial I/F: RS232, RS422/485, Current Loop, CANbus.
380x450x80 mm ; 3.5 kg .
