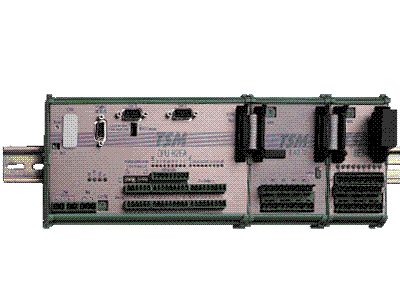

TSM Modular Controller

Rail mount BITBUS controller with modular extension capability

ELZET80´s modular computer series TSM clips easily to a standard control cabinet rail. The CPU module already includes everything to start with: power supply for up to 14 extension modules, serial communication ports and some process I/O.

The modular expandability without any bus boards or cradles offers the utmost flexibility - especially for small quantity applications.

It comes with a built-in real-time kernel - programmable in C - and a large set of i/o-functions like counters and pulse devices.

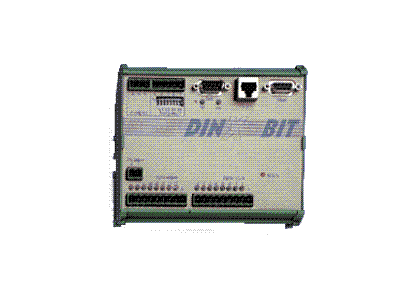

DinX Single Board

Rail mount BITBUS single board controller: 8i/8o 24V, 4i/2o analog, RS232, I²C extension

DinX is a cheap rail mount single boarder for a typical distributed control application: it can be programmed in C for autonomous operation using the mCAT real time kernel to create BITBUS user tasks.

For simple remote i/o operations the standard RAC/GBS task provides immediate access to all i/o.

The 24V optoisolated inputs can be used as counters, the 24V outputs directly drive valves at up to 500mA with short-circuit protection.

I/O-extension through I²C modules.

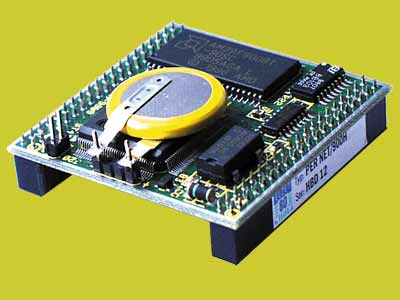

NET/900H BITBUS module

5x5cm (2x2") microcontroller module with RAM, Flash and BITBUS controller

Powerful universal processor core for "embedded control" applications. Plug it to custom base boards with drivers, relays, connectors etc., that - by their low complexity nature - usually can be manufactured using standard bi-layer pcb technology. Combined with the pre-configured real time kernel this approach helps keeping time-to-market short.

Features: 128K (512K) RAM w. Batt., 1MByte Flash, 16-Bit TLCS900H microcontroller, Z16C32 SDLC Controller for BITBUS. 8 timers 8 bit, 2 counter/timers 16 bit, 8i/2a analog, 4 µDMAs, 2 stepper motor /universal parallel ports, 2 UARTs.

DICO-188

Control and acquisition unit with native Bitbus. Connects 96 I/O; up to 854 I/O using additional units.

DICO-188 is an industrial controller which can handle 96 I/O points (up to 854 I/O, when combined with DICO-028 expansion units).
A terminal block is hinged to the front so as to make wiring very simple.
The unit comes with a special mount to be bolted to the rear of the service board.

16+16 PNP digital I/O and 4 slots for DICO I/O modules (up to 64 more I/O).

Optional serial I/F: RS232, RS422/485, Current Loop, CANbus.

.

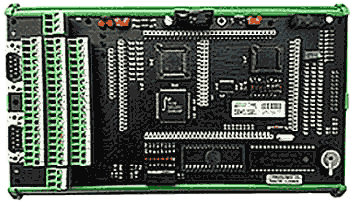

DICO-508

Control and acquisition unit.
Connects 48 I/O; up to 96 I/O using DICO-058.

DICO 508 is a control and/or acquisition unit which can be integrated in a Bitbus or CANbus network.
It can manage 48 I/O points (up to 96, with DICO-058 expansion unit).

Reduced dimensions and contained costs.

16+16 PNP digital I/O and one slot for DICO I/O module (16 more I/O points).

Optional serial I/F: RS232, RS422/485, Current Loop, CANbus.

.

DICO-708

Control and acquisition. Connects 32 I/O; up to 64 I/O using DICO-078.

DICO 708 is a control and/or acquisition unit which can be integrated in a Bitbus or CANbus network.
It can manage 32 I/O points (up to 64, with DICO-078 expansion unit). It has reduced dimensions and contained costs.

8+8 PNP digital I/O and one slot for DICO I/O module (16 more I/O points).

Optional serial I/F: RS232, RS422/485, Current Loop, CANbus.
Dimensions: 180x76x30 mm
Assembly: DIN EN50035 bar
